CATTA ZOOM
We named our Catta lenses after the lithe and curious Lemur Catta. A light, compact and versatile lens, it was designed to explore endless possibilities when shooting. With the increase of the full frame format in cinema, the Catta Zoom aims to meet the current market’s demand by offering compatibility with larger format cameras such as the latest Red V-raptor 8K.
Golden Focal Lengths
The third installation of DZOfilm’s zoom series offers coverage of core focal lengths to offer flexibility in diverse shooting setups. With the 35-80mm and 70-135mm lengths, shooters can be sure to create cinematic footage without sacrificing time in lens changes.
Lightweight Design
35-80mm t2.9: 1532g | 70-135mm T2.9: 1597g
Lighter than ever, the 35-80mm T/2.9 weighs only 1.53kg, and the 70-135mm T/2.9 clocks in at under 1.6kg. To achieve our lightest ever weight, we used polycarbonate and glass fibre when creating the shell. These cinema zoom lenses would be a great choice for live shows, documentaries, vehicle mounting and gun operation as well as in independent cinema. This is largely due to its precise parfocal design and easy application with gimbals such as the Ronin S2 and Crane 3s. As a result, these lenses are perfect for applications involving rapid movement.
Round Bokeh and Fine Details
The aperture consists of a diaphragm of 16 blades ranging from T/2.9-T/22. As a result, the Catta lenses produce round and smooth bokeh with a natural transition of image. The incredibly close focal distance enables users to shoot clear details and characteristics of the subject, with an admirable depth of field.
Authentic Colour Reproduction
The Catta zooms are inspired by the design philosophy of a natural, original and real look. As a result, these lenses reproduce the real world onto a full frame sensor. By reflecting the realistic, the post-production process is eased for creativity rather than correction.
Better Breathing Control Than Ever
Staying consistent, our latest addition to the DZOfilm family offers minimal breathing. With our Catta range, you notice a better performance when racking focus as the breathing has been rendered invisible. Take your focus off the focus and prioritise composition when shooting, as the edge of frame remains consistent.

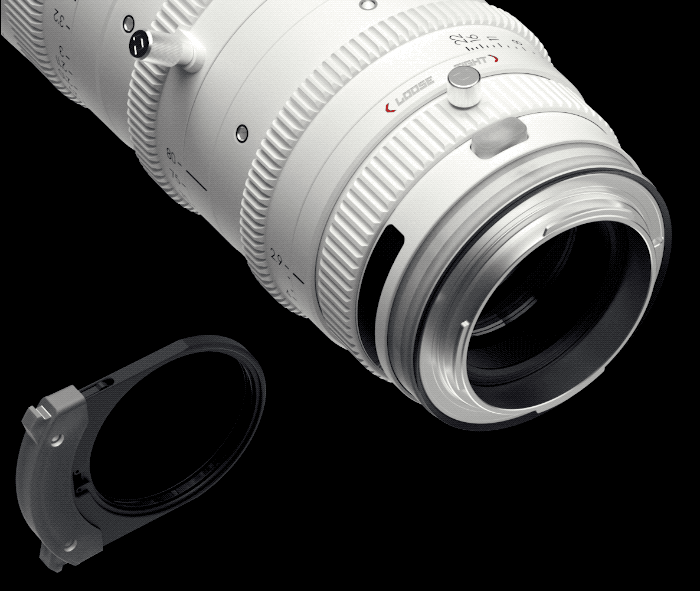

Insert the filter
Unlock the Secret of Mirage
Loaded with 77mm detachable front filter design, Catta Zoom lenses are also equipped with plug-in rear filter, adding amusement to shooting experience, allowing users to change rear ND/ UV/ Streak/ Mist filter freely.
It’s up to you to use the original filter or any other filter you want.
Please Note: This function only available in E / RF / L / X / Z mount version.

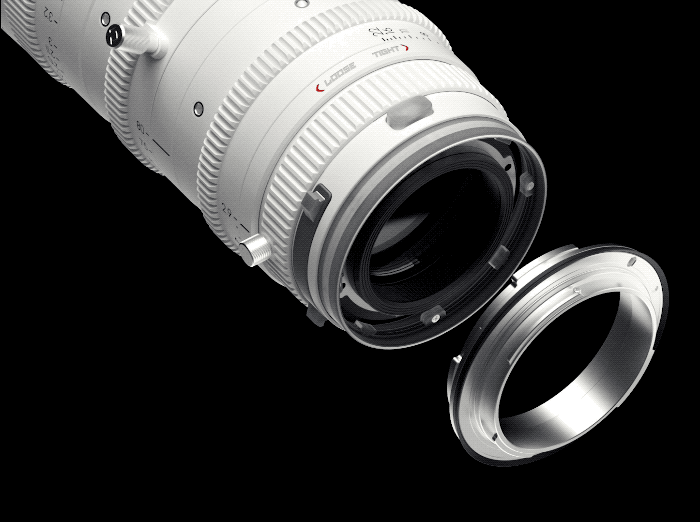

Variety of lens mounts available
In terms of mount, both lenses are originated in E mount. But thereare also additional mount to meet diversified needs, like RF/ L/ Z/X mount. Equipped with a quick-released interchangeable mount, it is easy and speedy to change mount.
Please Note: This function only available in E / RF / L / X / Z mount Version.
Aesthetically Designed with Industry Standards in Mind
The specifications and craftmanship are completely based on the unified standards of cinema-grade lenses. The manual focus range of 270º gives users a precise operating experience with a smooth glide. The mechanical and optical construction of these two lenses are identical, incorporating a perfect combination of wide angle and telephoto glass. This lack of difference offers perfect articulation.
- SPECIFICATIONS -
| FOCAL LENGTH | 35-80mm – White | 70-135mm – White | 35-80mm – Black | 70-135mm – Black | |
| MOUNT |
E / RF / L / X / Z |
PL / EF / LPL |
|||
| T -STOP |
T2.9 – T22 |
T2.9 – T22 |
|||
| LENS NUMBER | 20pieces, 15groups | 17pieces, 11groups | 20pieces, 15groups | 17pieces, 11groups | |
| MAG.RATION | 2.3X | 1.9X | 2.3X | 1.9X | |
| IMAGE CIRCLE |
43.5mm (FULL FRAME) |
46.5mm (VISTA VISION) |
|||
| FLANGE DISTANCE | 18mm – E 20mm – RF/L 17.7mm – X 17mm – Z | 18mm – E 20mm – RF/L 17.7mm – X 17mm – Z | 52mm – PL 44mm – EF/LPL | 52mm – PL 44mm – EF/LPL | |
| CLOSE FOCUS | 0.74m/ 2ft 5in | 0.76m/ 2ft 6in | 0.74m/ 2ft 5in | 0.76m/ 2ft 6in | |
| SIZE | 214.4mm/8.44” – E 212.4mm/8.36” – RF/L 214.7mm/8.45” – X 215.4mm/8.48” – Z | 214.4mm/8.44” – E 212.4mm/8.36” – RF/L 214.7mm/8.45” – X 215.4mm/8.48” – Z | 179.5mm/7.07” – PL 187.5mm/7.38” – EF/LPL | 179.5mm/7.07” – PL 187.5mm/7.38” – EF/LPL | |
| IRIS BLADES | 16 pcs | 16 pcs | 16 pcs | 16 pcs | |
| FRONT OUTER DIA. | φ80mm | φ80mm | φ80mm | φ80mm | |
| FILTER SIZE | M77*0.75 | M77*0.75 | M77*0.75 | M77*0.75 | |
| WEIGHT | ≈1532g | ≈1597g | ≈1635g | ≈1710g | |
